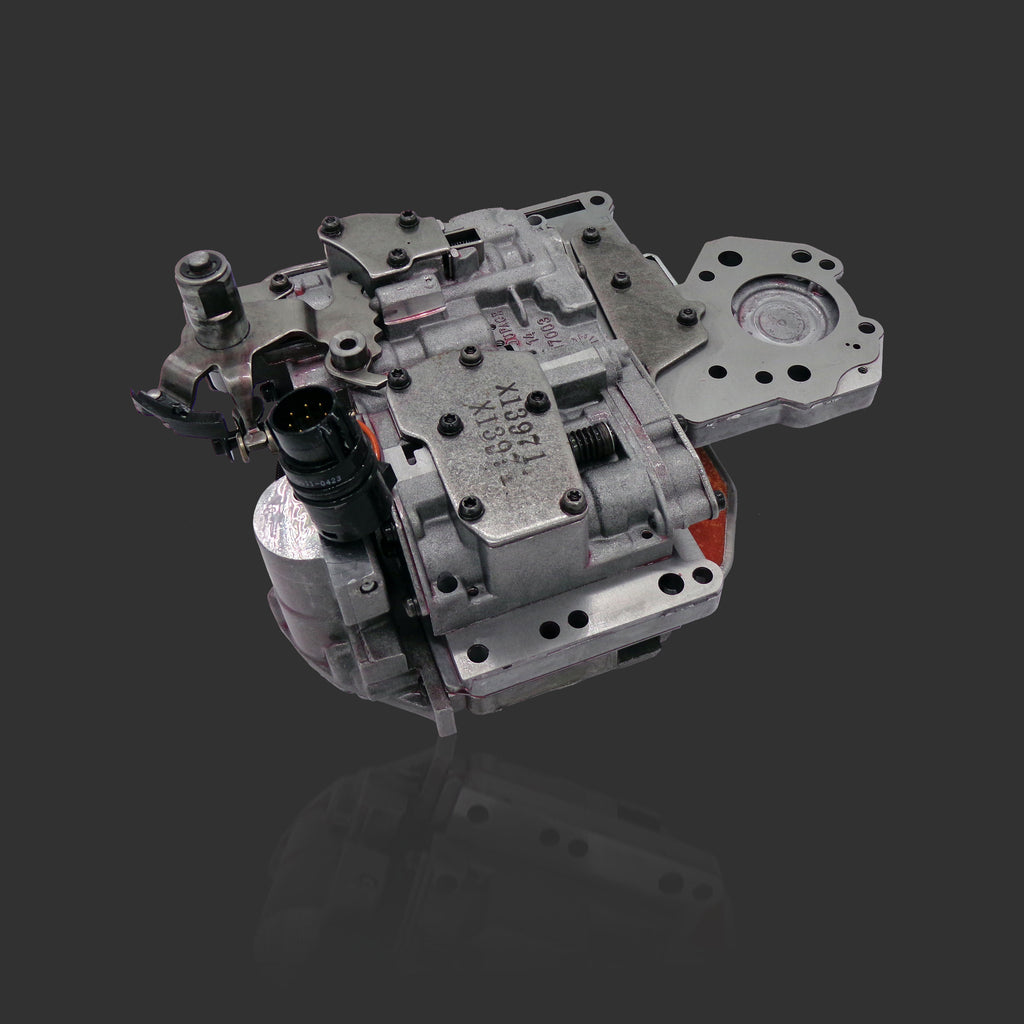

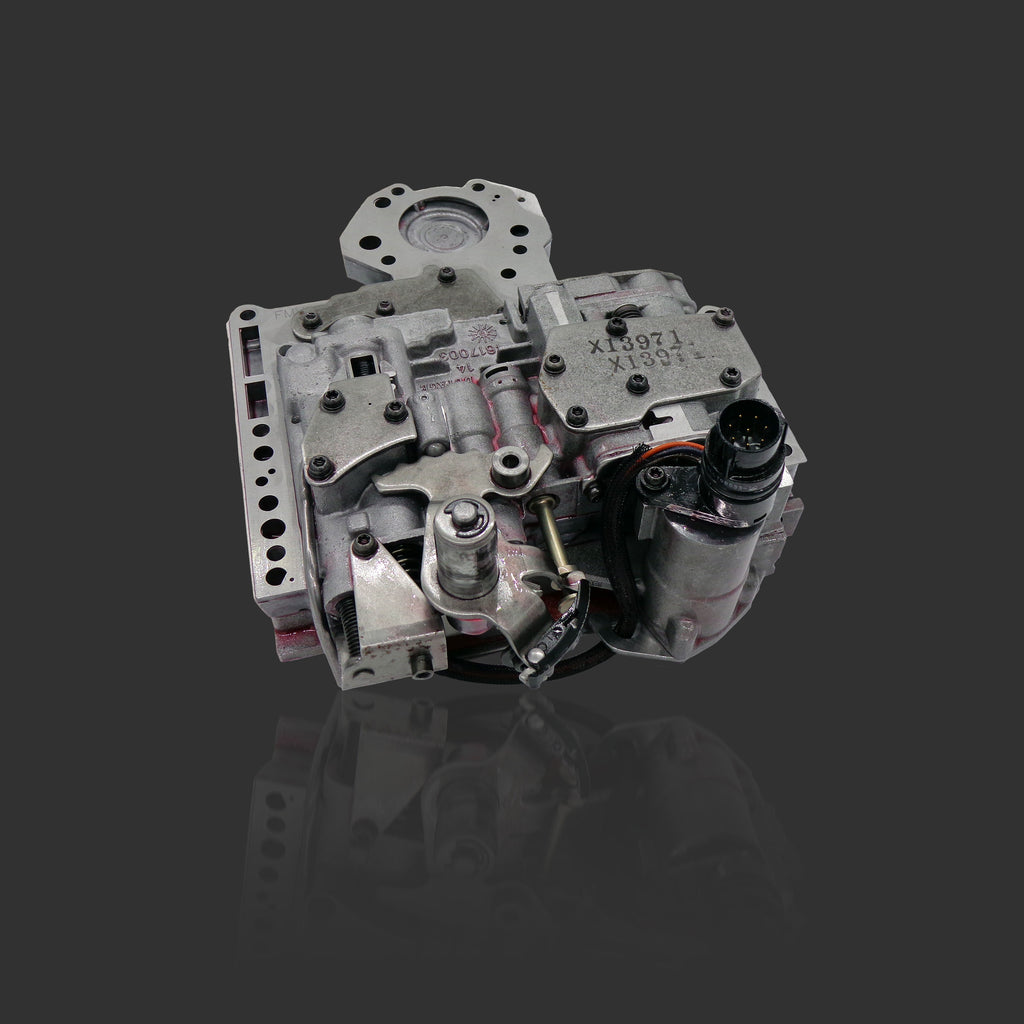

MPT Full Manual Valve Body 47RH/47RE


Shift Pattern: Forward Pattern
Core Charge: I will send my core in ahead of time
Billet Low/ Reverse Retainer: Include retainer (recommended for MVB)
Price:
Sale price$995.00

Description

MPT Full Manual VB Features
  • 2nd Gear Lockup (locks torque converter as soon as second gear is manually shifted, lockup switch must be on)
  • Locked 4-3 Downshift
  • No use of governor pressure solenoids/ transducers (Much more consistent shifts on high pressure valve bodies)
  • Valve Body Pressure adjustment and guideline instructions
  • Tested OD/TCC Solenoid
  • Custom laser cut separator plates
  • Castings flat sanded
  • Castings cleaned in ultrasonic cleaner
  • All threads checked and repaired if needed
  • Bores vacuum checked and repaired for excessive wear
  • Static line pressure set to 150PSI and 190PSI in 4TH/TCC Lockup. Valve body does not require any external line pressure adjustment.

MPT full manual valve bodies can be used in 47RH/RE transmissions. Please specify transmission type when ordering.

We accept 47 or 48 valve bodies as a core. If your valve body has been modified with anything other than a Transgo shift kit, please email us with images of your core. We do NOT accept BD, ATS or Sonnax valve bodies as cores.

Note: If you select the "I will send my core in ahead of time" option, MDP will not ship your valve body until after we receive your acceptable core.

To view product instructions for this Valve Body, click here.
