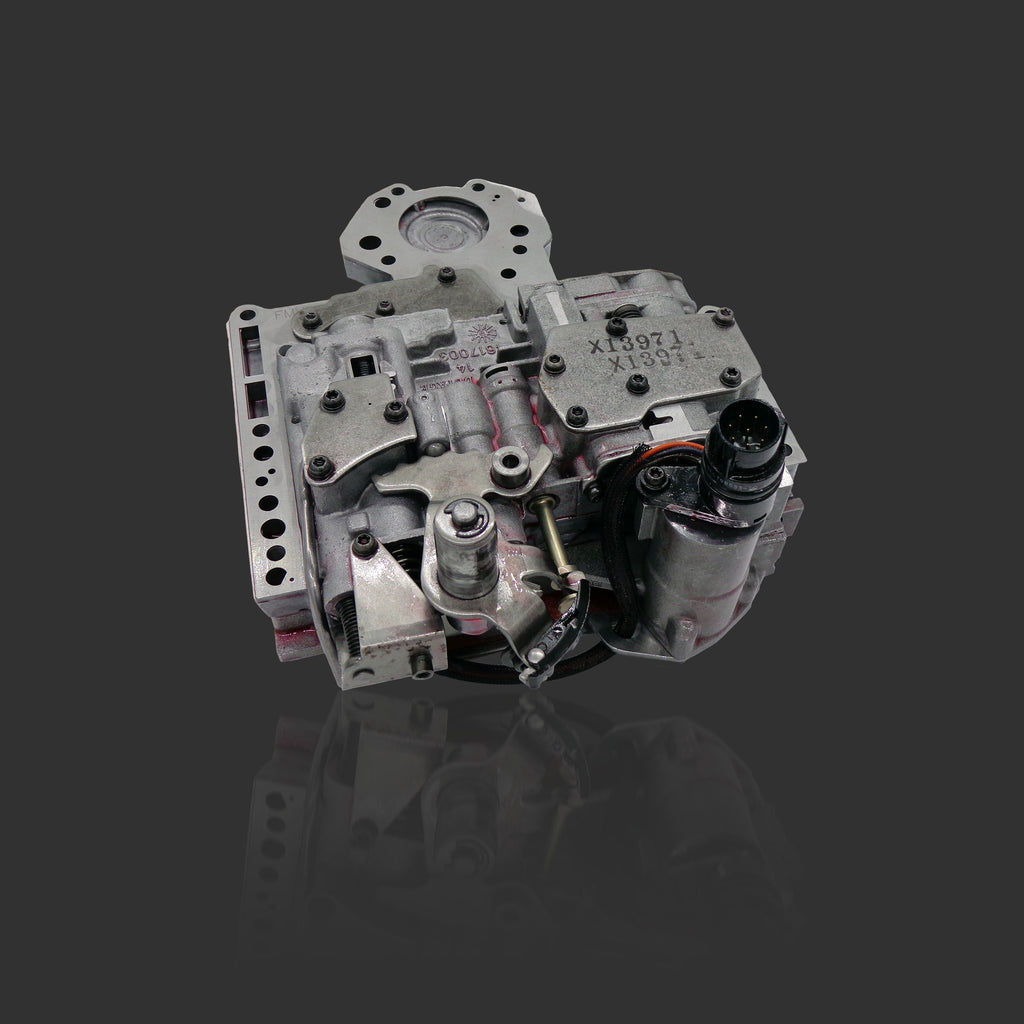

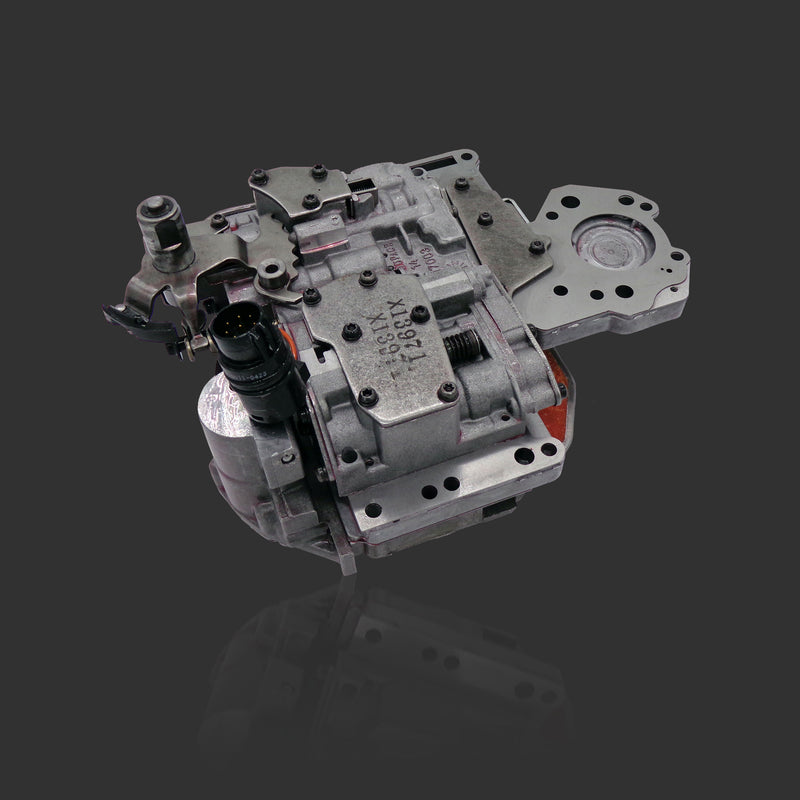

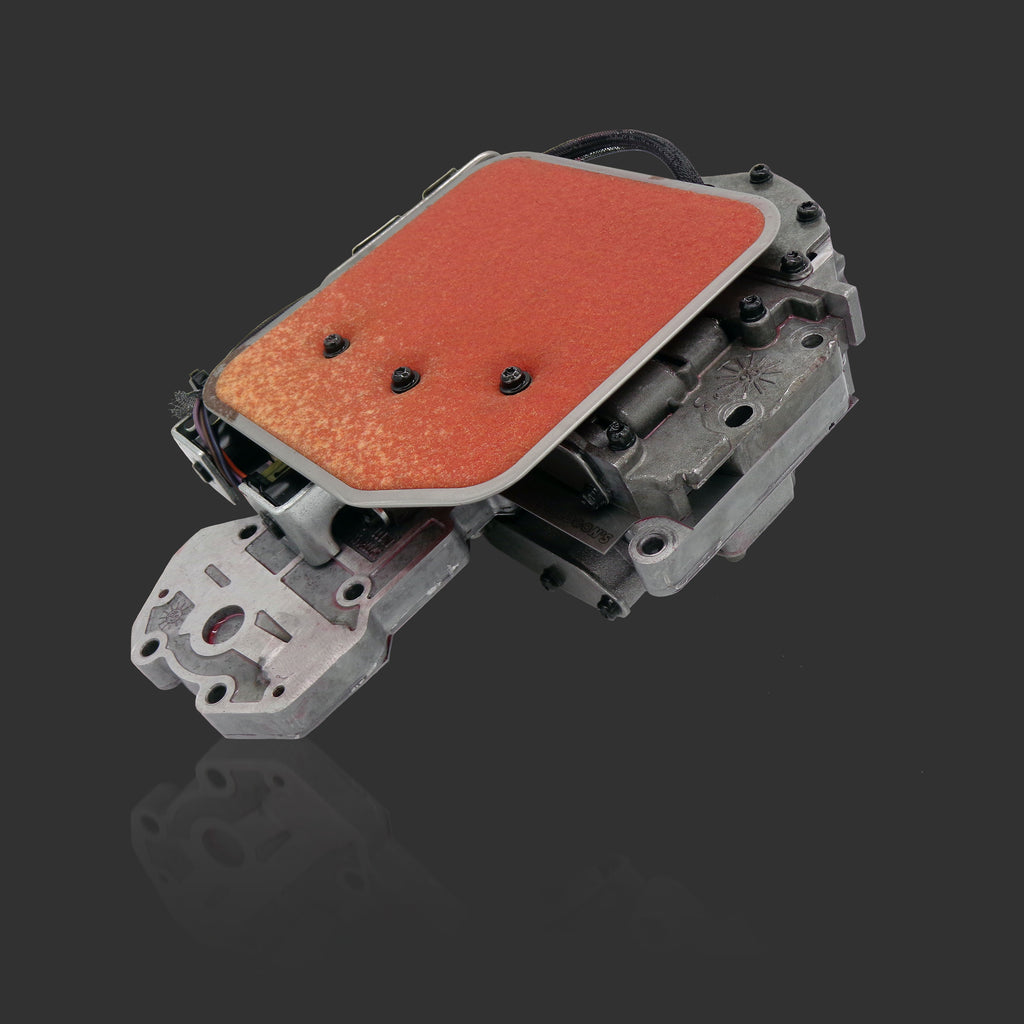

MPT Full Manual Valve Body


Shift Pattern: Forward Pattern
Core Charge: I will send my core in ahead of time
Billet Low/ Reverse Retainer: Include retainer (recommended for MVB)
Price:
Sale price$995.00

Description

MPT Full Manual VB Features
  • 2nd Gear Lockup (locks torque converter as soon as second gear is manually shifted, lockup switch must be on)
  • Locked 4-3 Downshift
  • No use of governor pressure solenoids/ transducers (Much more consistent shifts on high pressure valve bodies)
  • Valve Body Pressure adjustment and guideline instructions
  • Tested OD/TCC Solenoid
  • Custom laser cut separator plates
  • Castings flat sanded
  • Castings cleaned in ultrasonic cleaner
  • All threads checked and repaired if needed
  • Bores vacuum checked and repaired for excessive wear
  • Static line pressure set to 150PSI and 190PSI in 4TH/TCC Lockup. Valve body does not require any external line pressure adjustment.

We accept 47 or 48 valve bodies as a core. If your valve body has been modified with anything other than a Transgo shift kit, please email us with images of your core. We do NOT accept BD, ATS or Sonnax valve bodies as cores.

Note: MPT manual valve bodies are not shipped with 48RE rooster combs, if your manual valve body is being installed in a 48RE, please keep your existing rooster comb and swap it when you receive your manual valve body.

Note: If you select the "I will send my core in ahead of time" option, MDP will not ship your valve body until after we receive your acceptable core.
